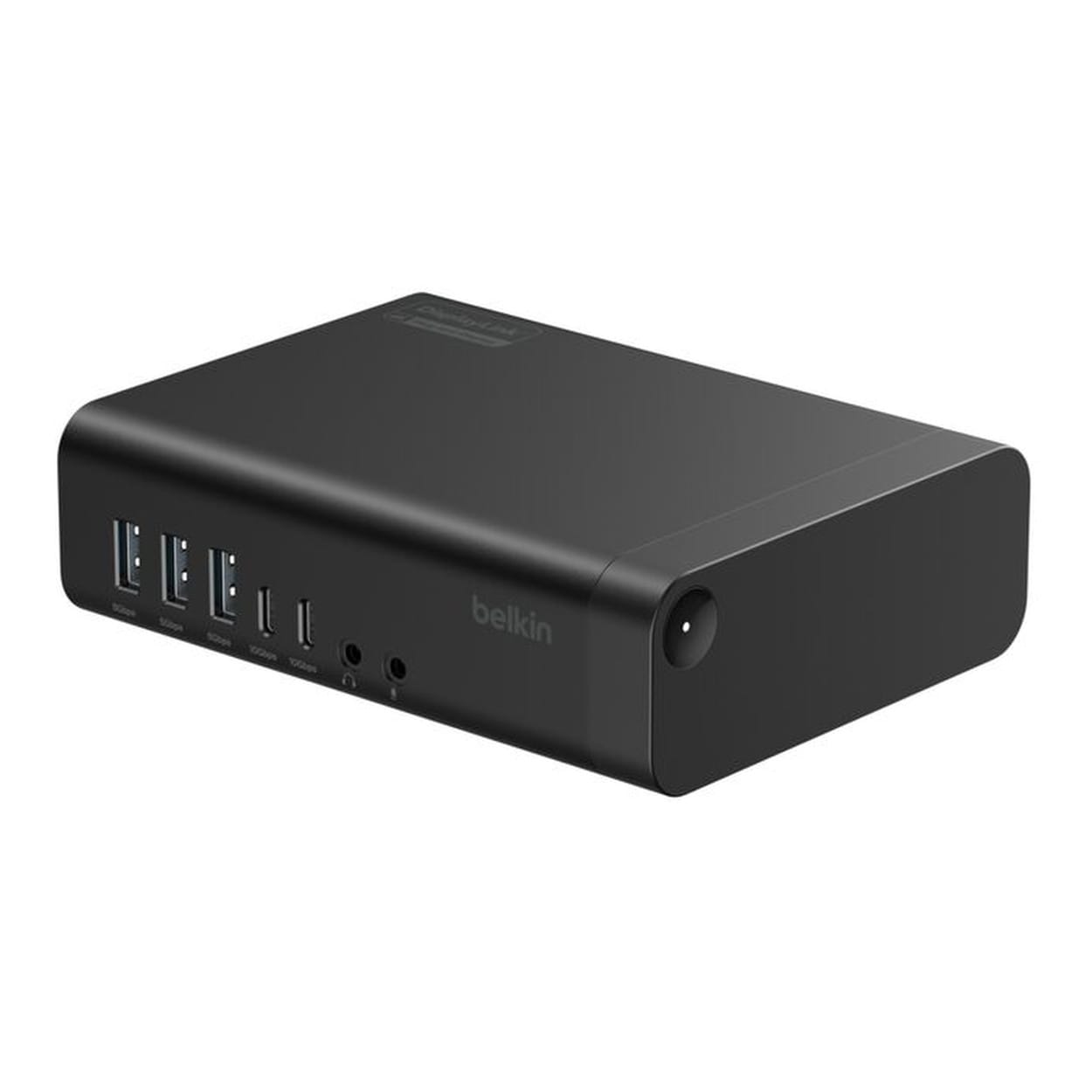

Belkin Connect Universal 16-port Triple Display Docking Station INC029KQBK
The Belkin Connect Universal 16-Port Triple Display USB-C Docking Station expands a compatible laptop into a versatile workstation through a single USB-C connection. Designed for professional, home-office and multitasking environments, it provides connections for up to three external displays, USB accessories, wired networking and separate audio devices while delivering up to 140W of power to a compatible host computer.
Build a Practical Triple-Display Workspace
DisplayLink technology enables supported computers to extend or mirror their desktop across as many as three external monitors, with resolutions up to 4K at 60Hz per display. Three HDMI 2.0 connections and two DisplayPort connections provide flexibility when arranging HDMI, DisplayPort or mixed-monitor setups.
One Dock for Displays, Data and Power
Sixteen connections accommodate displays, storage, keyboards, mice, audio equipment and other compatible peripherals. USB data transfer speeds of up to 10Gbps support compatible high-speed accessories, while the integrated 2.5Gb Ethernet port provides a dependable wired network connection for downloads, online meetings and everyday business use.
The included 180W power supply allows the dock to provide up to 140W Power Delivery to a compatible USB-C host device. A USB-C to USB-A adapter is also supplied for selected legacy computers, although charging and certain display functions may be limited when the dock is connected over USB-A.
Key Features:
Expands a compatible computer with 16 connections for displays, data, audio, networking and power.
Supports up to three active external displays at resolutions up to 4K at 60Hz per monitor, depending on the host computer and display configuration.
DisplayLink technology supports flexible multi-display operation across compatible Windows, macOS and ChromeOS systems.
Provides up to 140W USB-C Power Delivery to a compatible host device using the included 180W power supply.
USB-C 3.2 ports offer data transfer speeds up to 10Gbps and charging for compatible accessories.
Integrated 2.5Gb Ethernet provides a fast, stable wired network connection.
Includes a USB-C to USB-A adapter to support selected legacy laptops, subject to the capabilities of the host computer.
Flexible Display Connectivity
The dock includes three HDMI 2.0 ports and two DisplayPort connections, giving users a choice of connections without requiring every monitor to use the same interface. Although five video outputs are provided, a maximum of three external monitors can be active simultaneously. The latest DisplayLink drivers are recommended for the best multi-display compatibility and may be required on certain operating systems.
Technical Specifications:
Specification
Details
Brand
Belkin
Product Range
Connect
Model
Universal 16-Port Triple Display USB-C Dock
Manufacturer Part Number
INC029KQBK
Product Type
USB-C docking station
Colour
Black
Total Connections
16
Display Technology
DisplayLink
Maximum Active Displays
Up to three external monitors
Maximum Display Resolution
Up to 4K at 60Hz per monitor, subject to host-device compatibility and configuration

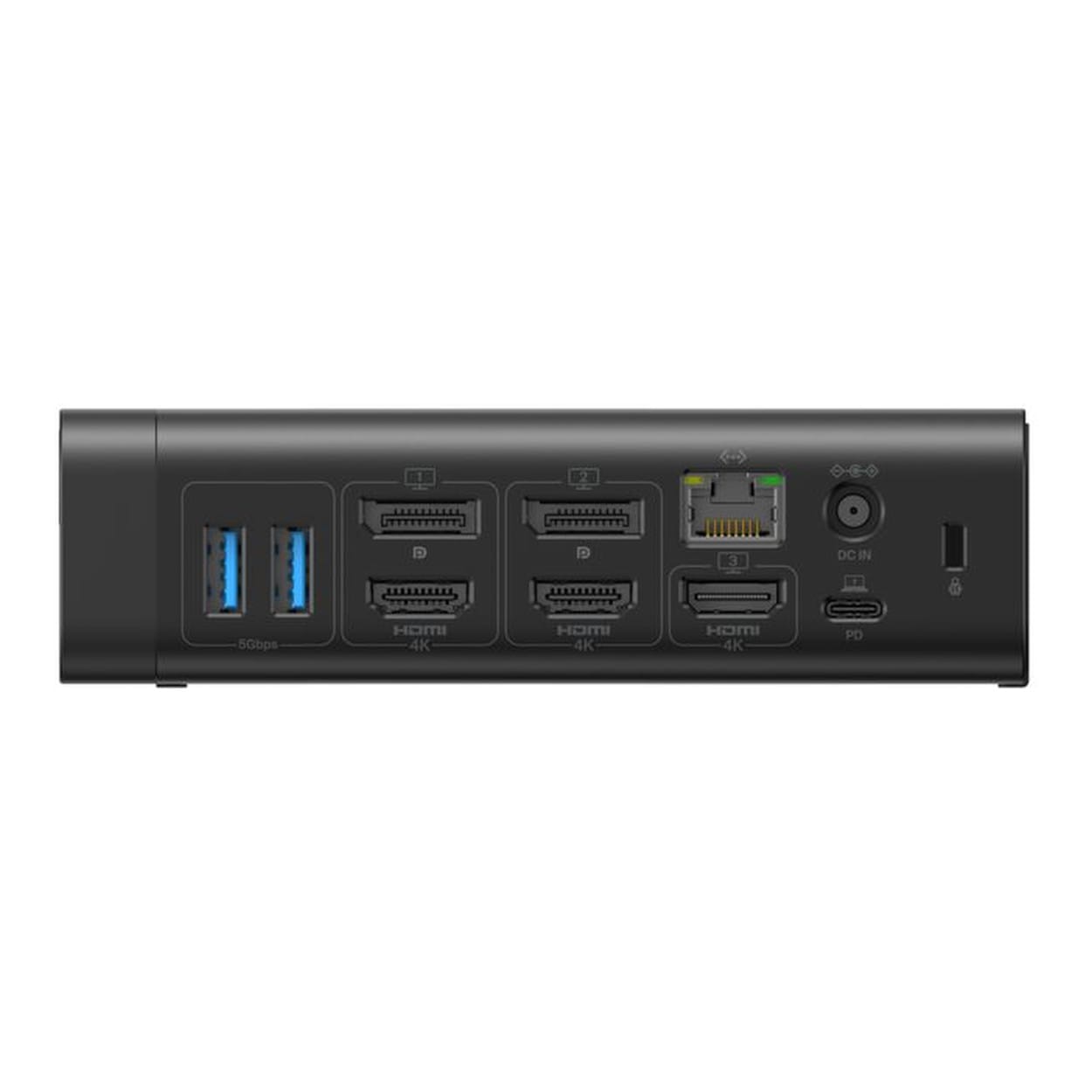

Video Connections
3 × HDMI 2.0 and 2 × DisplayPort

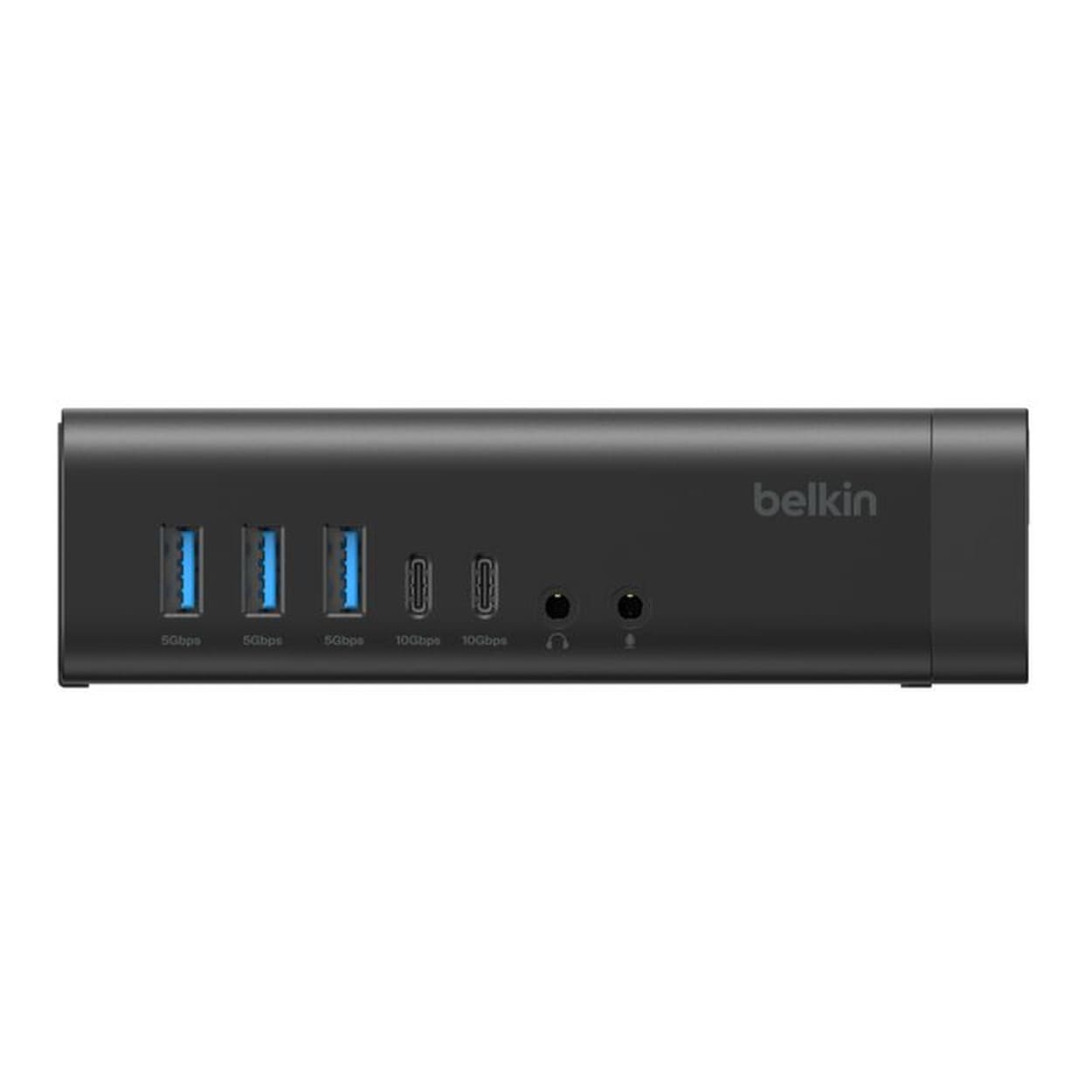

Front USB-A Ports
2 × USB-A 3.0 at 5Gbps and 1 × USB-A 3.0 at 5Gbps with up to 7.5W charging
Front USB-C Ports
1 × USB-C 3.2 at 10Gbps with up to 15W charging and 1 × USB-C 3.2 at 10Gbps with up to 7.5W charging
Rear USB-A Ports
2 × USB-A 3.0 at 5Gbps
Host Connection
USB-C 3.2 with up to 140W Power Delivery
Maximum Data Transfer Speed
Up to 10Gbps
Networking
2.5Gb Ethernet
Audio Connections
3.5mm stereo headphone jack and 3.5mm microphone jack
Additional Connections
DC power input and security lock slot
Host Power Delivery
Up to 140W
Power Supply
180W power supply included
Compatibility
Compatible USB-C devices and Thunderbolt 5, Thunderbolt 4 and Thunderbolt 3 ports
Supported Operating Systems
Windows, macOS and ChromeOS; features may vary by system
Software
DisplayLink driver recommended; compatible with Belkin Dock Utility software

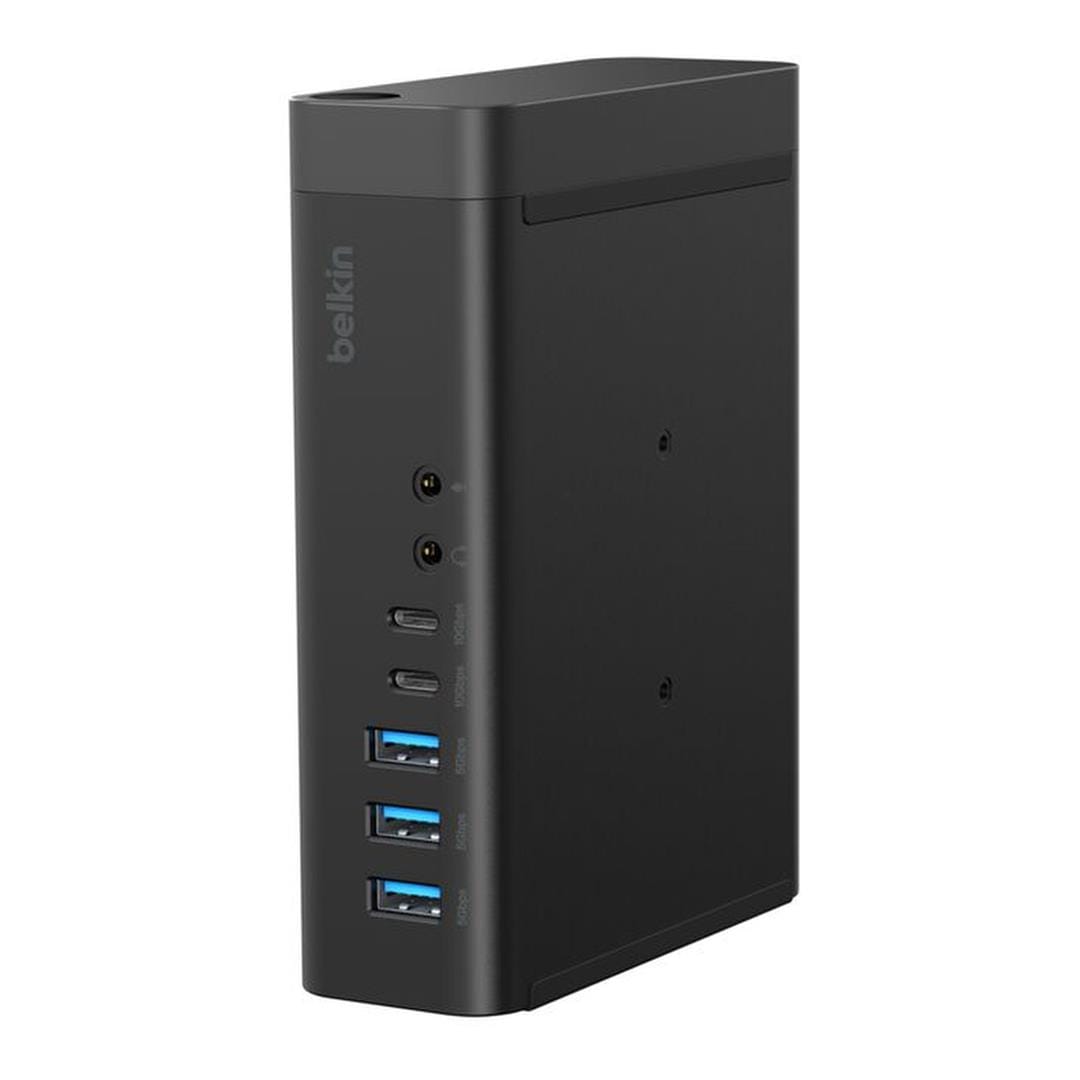

VESA Mounting
Compatible with a suitable VESA mount; mount and screws not included
Dimensions
140 × 105 × 40.1mm
Weight
517g
USB-C Cable Length
1m
Power Cable Length
1m
Warranty
Three-year Belkin warranty
Box Contents

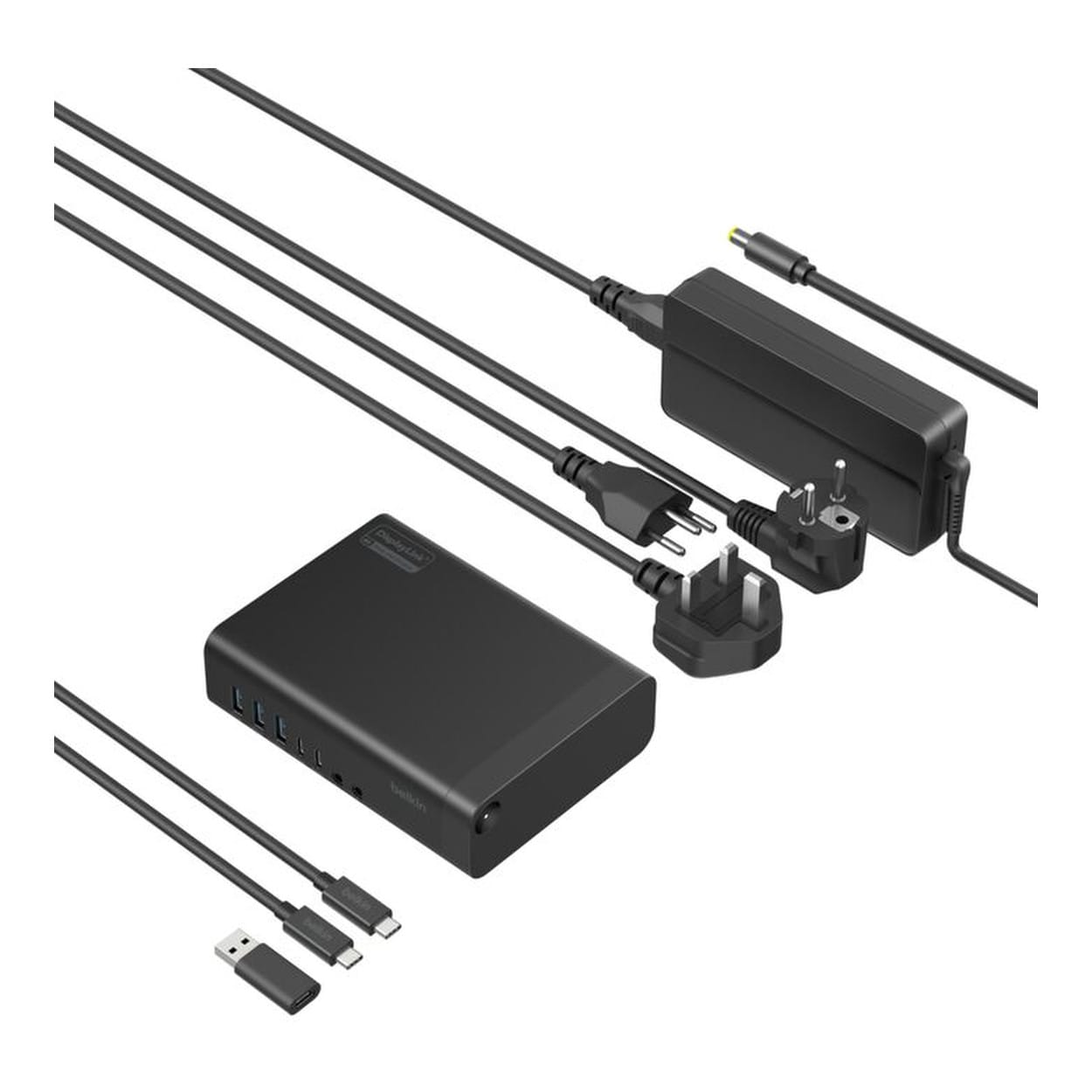

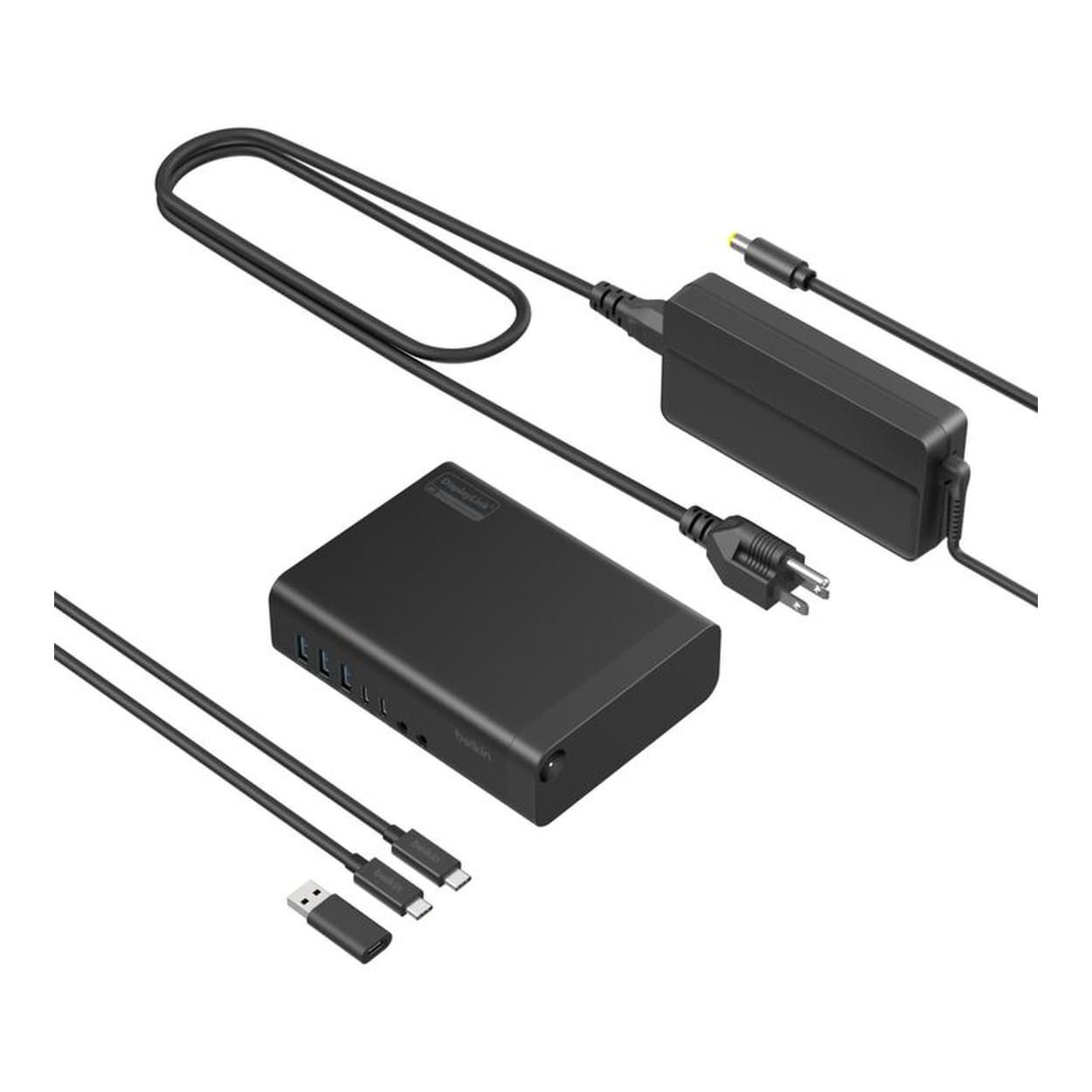

Belkin docking station, 180W power supply and 1m power cord, 1m USB-C to USB-C cable, and USB-C to USB-A adapter
Expand your workstation with practical multi-display, networking and peripheral connectivity, and add the Belkin INC029KQBK docking station to your cart today.
