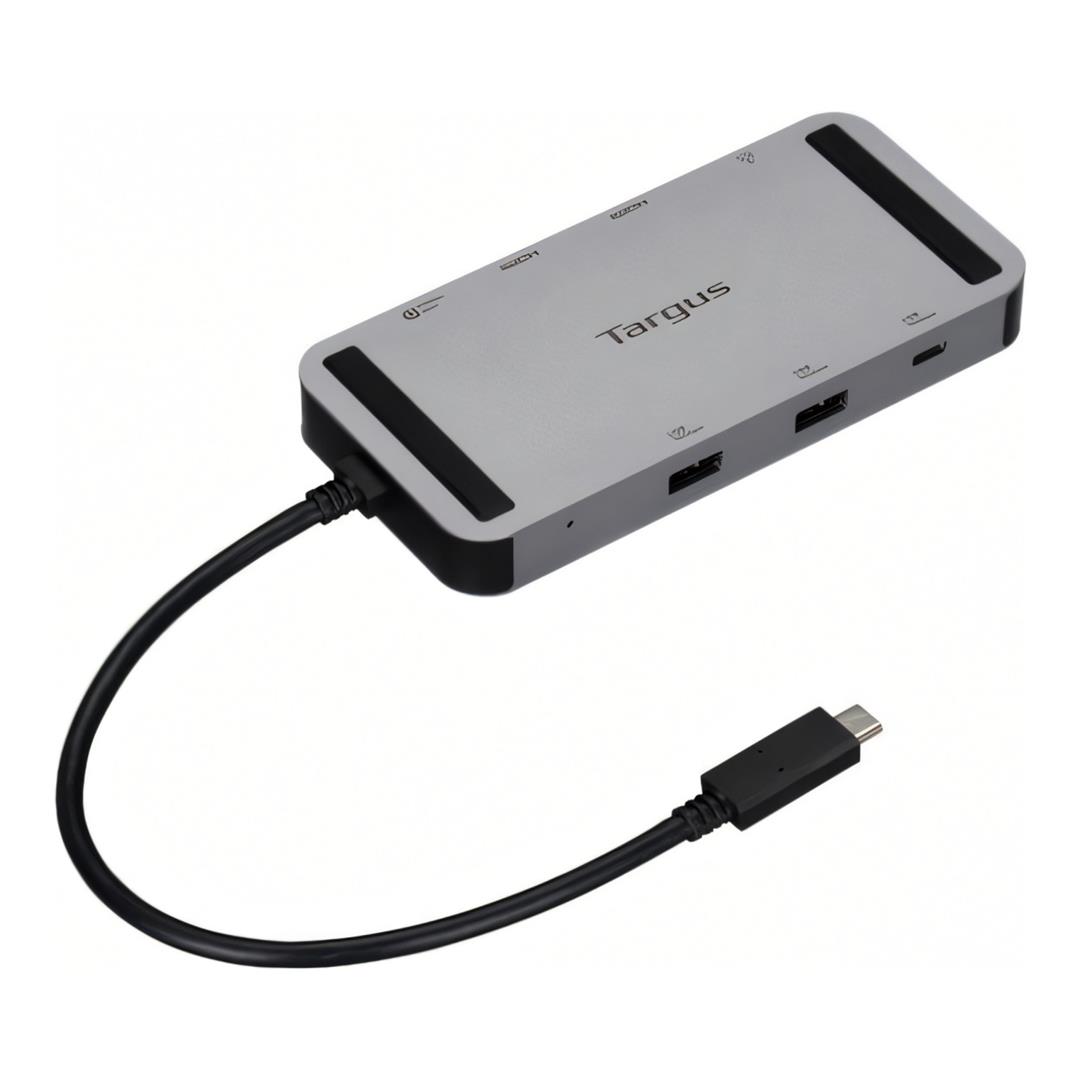

Targus 140W EPR USB4 Dual Video Mobile Dock DOCK429GL
The Targus DOCK429GL USB4 Dual Video Mobile Dock is a compact connectivity solution designed for mobile professionals who need high-resolution external displays, fast peripheral connectivity, wired networking and powerful laptop charging from a portable dock. Its integrated USB4 host cable provides up to 20Gbps connectivity and works with compatible USB4, Thunderbolt 3/4 and USB-C DisplayPort Alt Mode laptops. Dual HDMI 2.0 ports and USB-C Multi-Function DisplayPort support enable up to a single 8K 30Hz display or dual 4K 60Hz displays, while four 10Gbps USB peripheral connections, Gigabit Ethernet and up to 140W PD 3.1 EPR power pass-through provide flexible workstation expansion at home, in the office or while travelling.

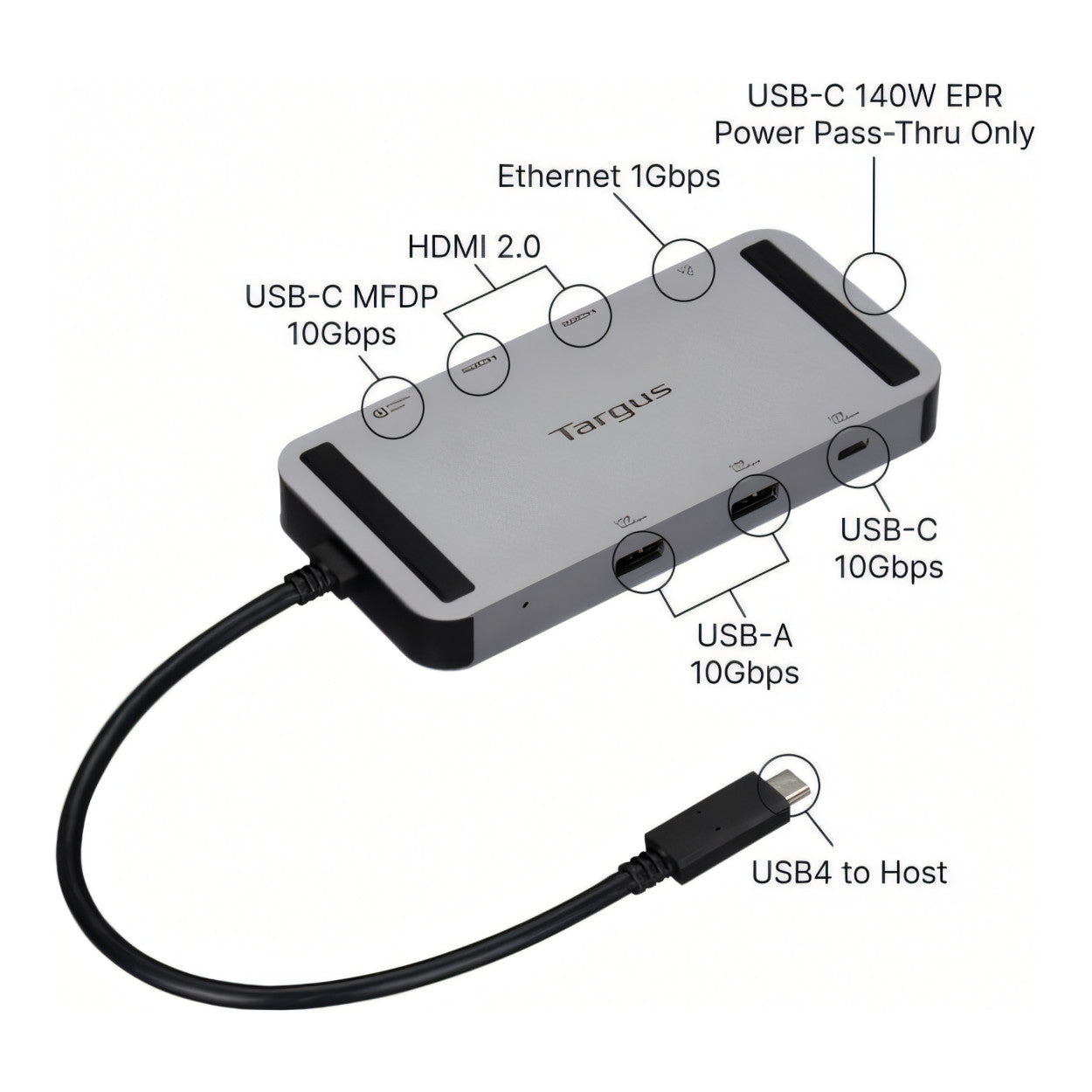

Key Features
USB4 host connectivity: Integrated USB4 host cable provides up to 20Gbps connectivity for compatible laptops and devices.
Single 8K display support: Supports resolutions up to 7680 × 4320 at 30Hz when using a compatible single-display configuration.
Dual 4K at 60Hz: Expand your workspace with up to two compatible 3840 × 2160 displays operating at 60Hz.
Dual HDMI 2.0: Two HDMI outputs provide convenient connectivity for commonly used external monitors and displays.
USB-C MFDP: Multi-Function DisplayPort over USB-C provides additional display and high-speed data connectivity.
Four 10Gbps USB connections: Two USB-A and two USB-C connections provide fast connectivity for storage and other peripherals.
Gigabit Ethernet: Integrated RJ45 networking provides wired network connectivity at up to 1Gbps.
Up to 140W EPR pass-through: Supports up to 140W laptop charging with a compatible PD 3.1 EPR charger and host device.
Broad host compatibility: Works with compatible USB4, Thunderbolt 3/4 and USB-C DisplayPort Alt Mode devices.
EcoSmart construction: Manufactured using 75% post-consumer recycled plastics and aluminium.
USB4 Connectivity
The DOCK429GL connects to a compatible laptop using its integrated USB4 host cable, providing host connectivity at up to 20Gbps. The host connection is also compatible with Thunderbolt 3, Thunderbolt 4 and supported USB-C DisplayPort Alt Mode laptops, making the dock suitable for a broad range of modern computers.
Single 8K or Dual 4K Displays

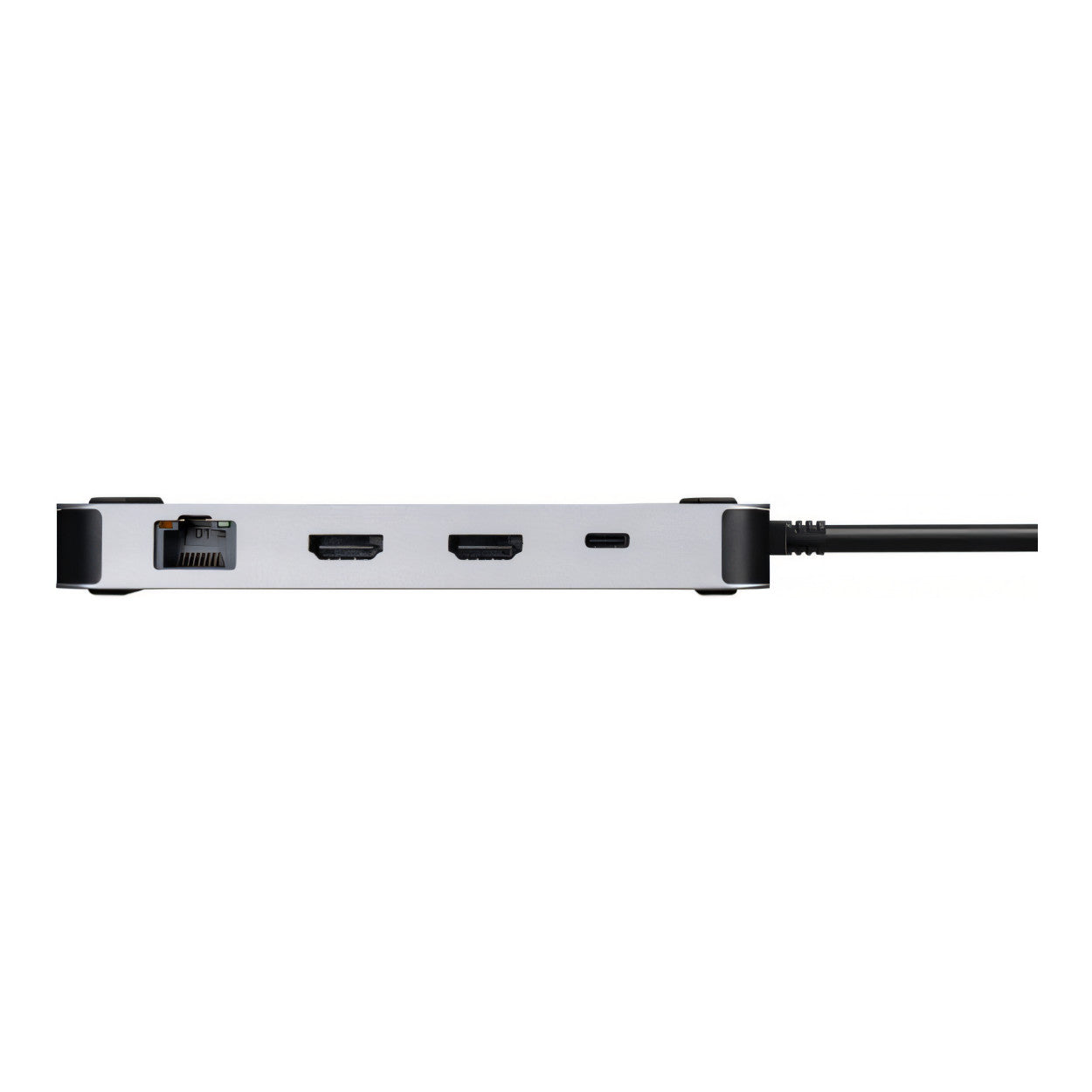

Dual HDMI 2.0 ports and USB-C Multi-Function DisplayPort connectivity provide flexible external display expansion. With compatible hardware, the dock can support a single display at up to 7680 × 4320 at 30Hz or two displays at up to 3840 × 2160 at 60Hz, providing additional screen space for productivity, creative applications and multitasking.
High-Speed USB Expansion

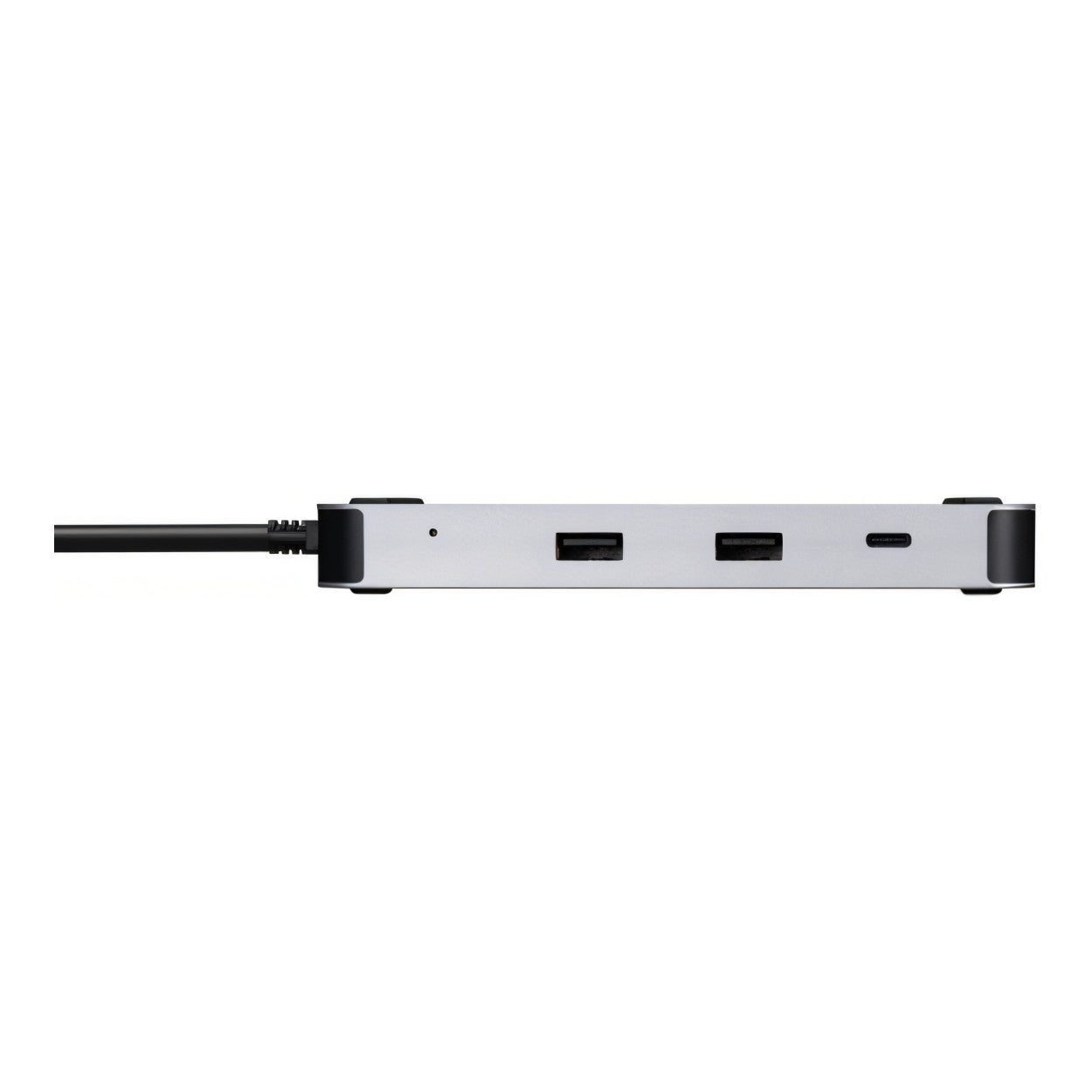

The DOCK429GL provides two USB-A and two USB-C peripheral connections capable of data transfer rates up to 10Gbps. One of the USB-C connections incorporates Multi-Function DisplayPort functionality, providing additional flexibility for compatible displays and peripherals.
Up to 140W PD 3.1 EPR Pass-Through
Connect a compatible USB-C laptop charger to the dock to power your computer while using the dock’s other connectivity features. With a compatible PD 3.1 Extended Power Range charger and host device, the DOCK429GL supports power pass-through of up to 140W. Compatible PD 3.0 systems support power delivery of up to 100W.
Gigabit Ethernet
An integrated RJ45 Gigabit Ethernet interface provides up to 10/100/1000Mbps wired network connectivity. This provides a convenient alternative to wireless networking when a stable wired connection is preferred for office networks, internet access or large file transfers.
Portable EcoSmart Design
Designed for mobile and hybrid professionals, the DOCK429GL measures approximately 133.4 × 66.8 × 17.5mm and weighs approximately 230g. Its enclosure incorporates 75% post-consumer recycled plastics and aluminium, combining portable workstation expansion with Targus EcoSmart sustainability-focused construction.
Technical Specifications
Specification
Details
Brand
Targus
Model / SKU
DOCK429GL
Product Name
USB4 Dual Video Mobile Dock with 140W EPR Pass-Thru
Product Type
USB4 Mobile Docking Station
Host Connection
USB-C / USB4 via Integrated Cable
Host Interface Speed
Up to 20Gbps
Host Compatibility
USB4, Thunderbolt 3, Thunderbolt 4 and USB-C DisplayPort Alt Mode
Maximum Displays
2
Maximum Single Display Resolution
7680 × 4320 (8K) at 30Hz
Maximum Dual Display Resolution
2 × 3840 × 2160 (4K) at 60Hz
HDMI Ports
2 × HDMI 2.0
USB-C MFDP Port
1 × USB-C Multi-Function DisplayPort, Up to 10Gbps
USB-C Data Port
1 × USB-C, Up to 10Gbps
USB-A Ports
2 × USB-A, Up to 10Gbps
Total USB Peripheral Ports
4
Ethernet
1 × RJ45 Gigabit Ethernet
Ethernet Speed
10/100/1000Mbps
Audio Port
None
Maximum Power Pass-Through
Up to 140W
Power Delivery Standard
USB PD 3.1 EPR
PD 3.1 EPR Power
Up to 140W with Compatible Charger and Host
PD 3.0 Power
Up to 100W with Compatible Charger and Host
Power Source
Bus Powered / USB-C Power Pass-Through
Operating System Compatibility
Windows / macOS / Linux / ChromeOS / Android
Plug and Play
Yes
Recycled Material Content
75% Post-Consumer Recycled Plastics and Aluminium
Dimensions
133.4 × 66.8 × 17.5mm
Weight
Approx. 230g
UPC
092636373290
Warranty
3-Year Limited Warranty
What’s in the Box:
1 × Targus DOCK429GL USB4 Dual Video Mobile Dock with 140W EPR Pass-Thru
1 × Integrated USB4 Host Cable
Expand a compatible USB4, Thunderbolt or USB-C laptop with the Targus DOCK429GL, combining single 8K or dual 4K display support, four 10Gbps USB peripheral connections, Gigabit Ethernet and up to 140W PD 3.1 EPR power pass-through in a compact mobile docking solution.
